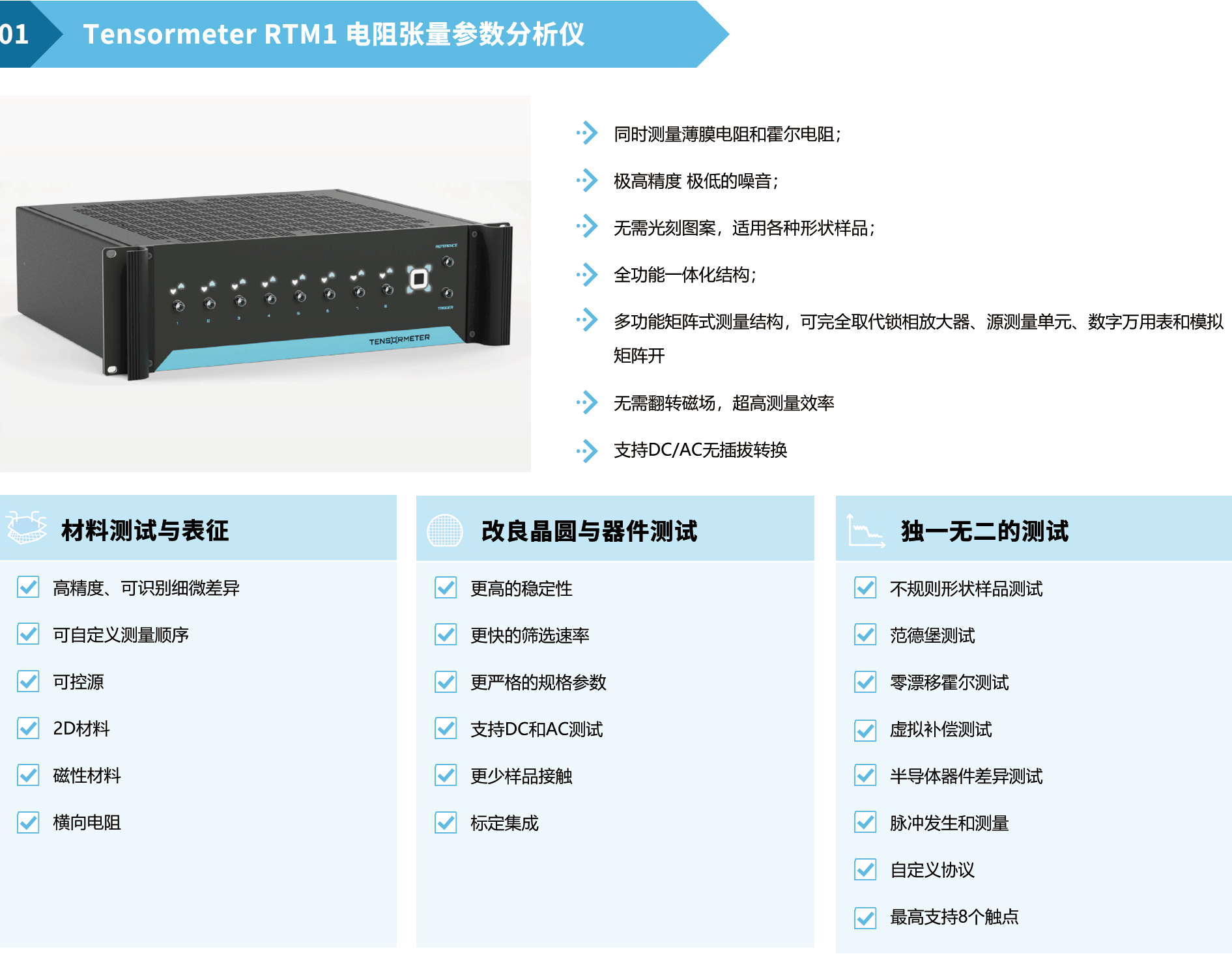

電阻張量參數分析儀
Tensormeter |
某品牌 |
某品牌 |
|||
RTM1 |
快速霍爾測量?jī)x器 |
參數分析儀-SMU |
參數分析儀-CVU |
參數分析儀-PMU |
|
Measure capability |
DC, AC, pulsed I-V, van-der-Pauw, ?零漂移霍爾測量，? |
DC I-V |
DC I-V |
AC C-V |
Pulsed I-V |
Measure ranges |
±20 V ±0.1 A 10 G? DC – 20 kHz |
±10 V ±0.1 A 100?k? DC |
±210 V ±1 A 10 T? DC |
±1 VAC ±0.001 A ? 1 kHz – 10 MHz |
|
DC precision |
0.2?μV 100 pA 10 μ? |
1mV 1μA 10m? |
0.2?μV 0.1 pA |
N/A |
N/A |
AC precision |
0.1 nV 1 nA 10 n? 0.2 ps phase 1?pF, 10 nH |
N/A |
N/A |
0.3 ps phase 0.001 pF ? |
N/A |
Drift |
<0.1?ppm/K |
No spec |
No spec |
No spec |
No spec |
Pulses |
±40 V ±0.1 A 10 μs No measurement |
N/A ? |
N/A |
N/A |
±40 V pulse ±0.8 A 20 ns 200 MS/s measure |
Switch Unit |
Integrated 4x8 Matrix switch |
Switch mainframe with matrix card |
N/A |
N/A |
N/A |
